Complete Class D Family
TA-CD-AX Series
All TA-CD-AX Series amplifiers feature stop-start compatibility, EV compatibility, 100% designed and engineered in the USA, balanced inputs that cover a wide range of OEM inputs, bridged mode and signal sense auto turn-on, wide range of feature options including bandpass crossovers (on some models), low EMI design with point of source filtering, class D synchronization for significantly lower noise and total immunity to heterodyne noise, class D switching above 450KHz available for better sonic clarity, US support and contact point available.

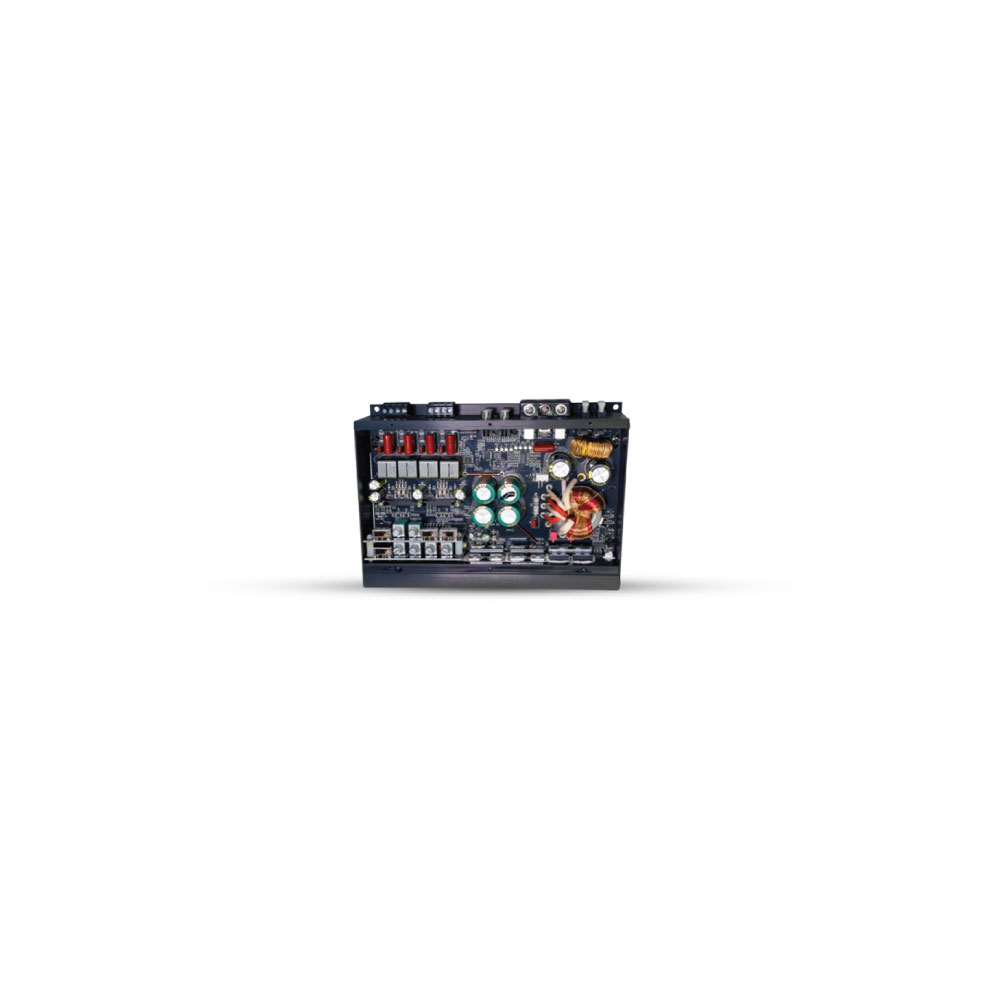

TA-CD-AX.4.1
4-channel full range amplifier
I/O: 1 Side
4 Channel @ 4Ω 85W
4 Channel @ 2Ω 125W
2 Channel @ 4Ω 250W (bridged)
LxWxH: 8.173″ × 6.268″ × 2.086″

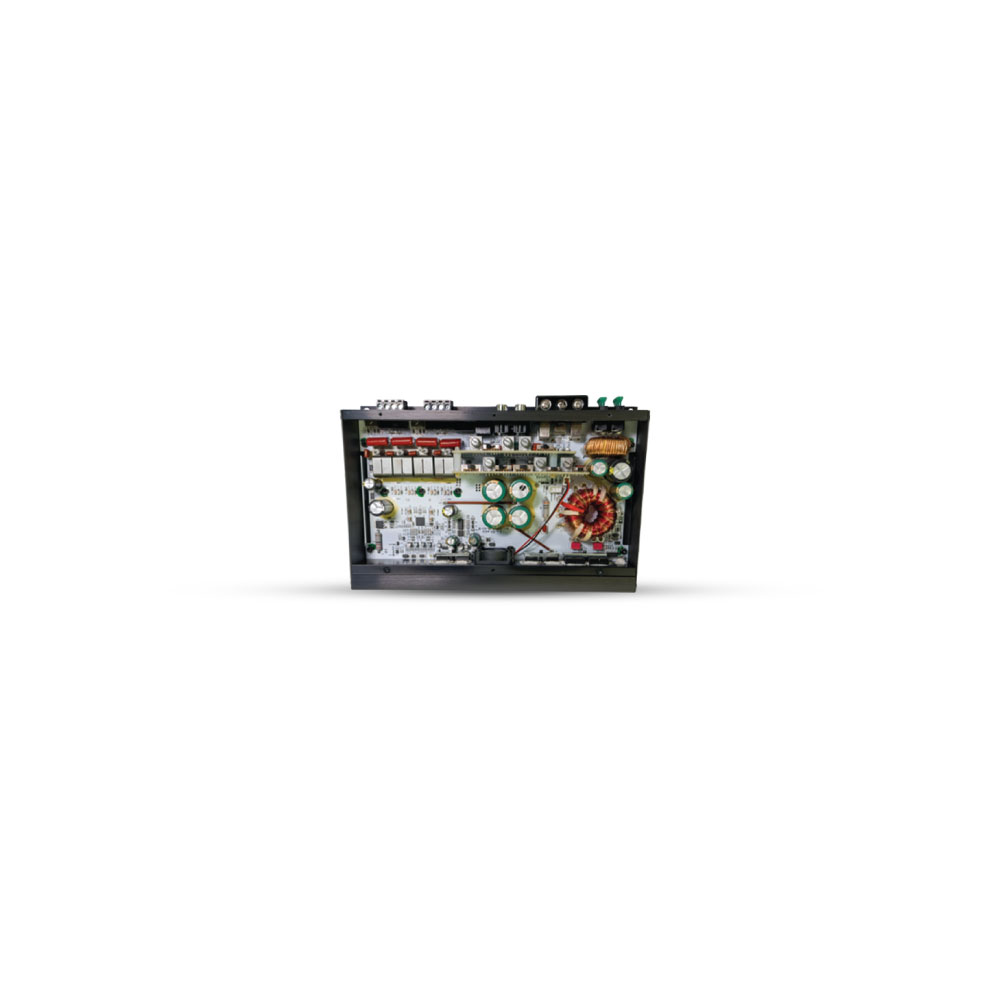

TA-CD-AX.4.2
4-channel full range amplifier
I/O: 1 Side
4 Channel @ 4Ω 150W
4 Channel @ 2Ω 150W
2 Channel @ 4Ω 300W (bridged)
LxWxH: 9.02″ × 6.268″ × 2.162″

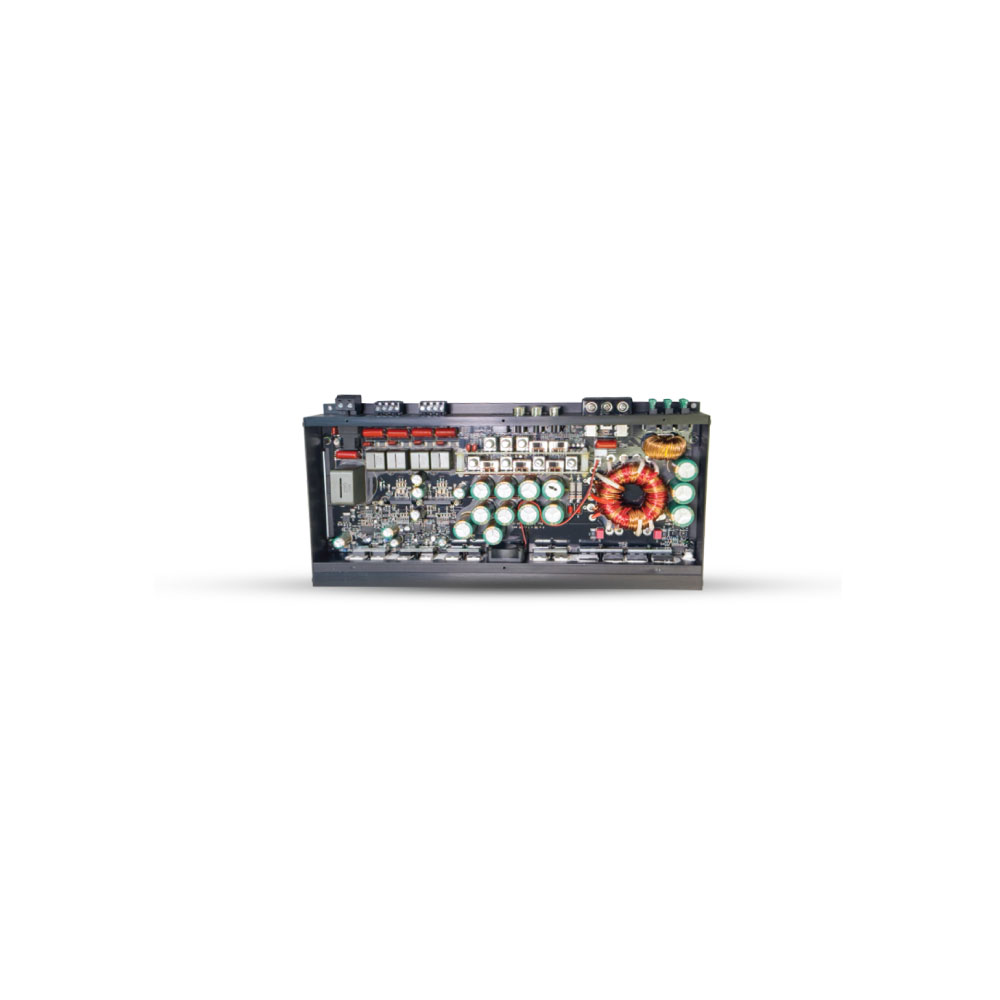

TA-CD-AX.5.1
5-channel full range amplifier
I/O: 1 Side
4 Channel @ 4Ω 85W (Ch1-4)
4 Channel @ 2Ω 125W (Ch1-4)
2 Channel @ 4Ω 250W (Ch1-4 bridged)
1 Channel @ 4Ω 225W (Ch5)
1 Channel @ 2Ω 400W (Ch5)
(Ch5 20Hz~230Hz)
LxWxH: 12.42″ × 6.268″ × 2.086″

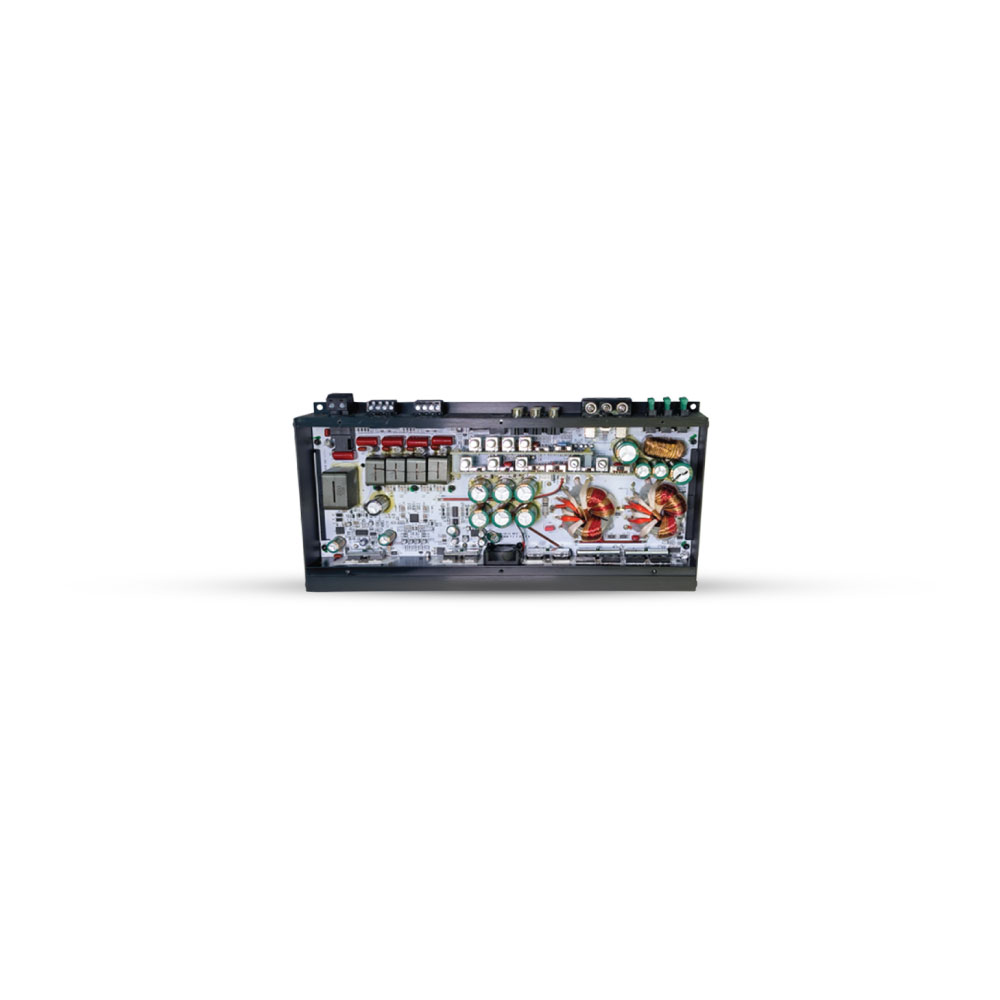

TA-CD-AX.5.2
5-channel full range amplifier
I/O: 1 Side
4 Channel @ 4Ω 150W (Ch1-4)
4 Channel @ 2Ω 150W (Ch1-4)
2 Channel @ 4Ω 300W (Ch1-4 bridged)
1 Channel @ 4Ω 275W (Ch5)
1 Channel @ 2Ω 500W (Ch5)
(Ch5 20Hz~230Hz)
LxWxH: 12.42″ × 6.268″ × 2.162″

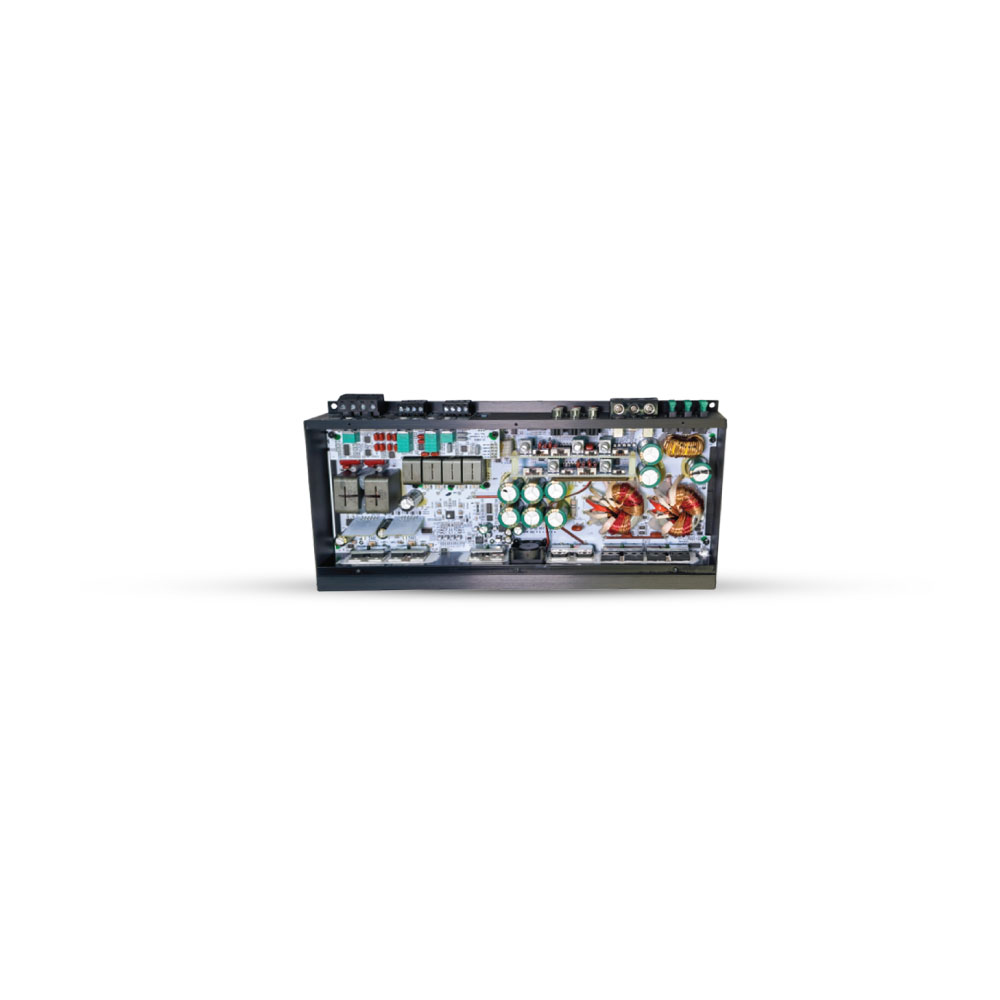

TA-CD-AX.6.1
6-channel full range amplifier
I/O: 1 Side
4 Channel @ 4Ω 150W (Ch1-4)
4 Channel @ 2Ω 150W (Ch1-4)
2 Channel @ 4Ω 300W (Ch1-4 bridged)
2 Channel @ 4Ω 150W (Ch5-6)
2 Channel @ 2Ω 300W (Ch5-6)
1 Channel @ 4Ω 600W (Ch5-6 bridged)
(Ch5-6 20Hz~230Hz)
LxWxH: 13″ × 6.268″ × 2.162″

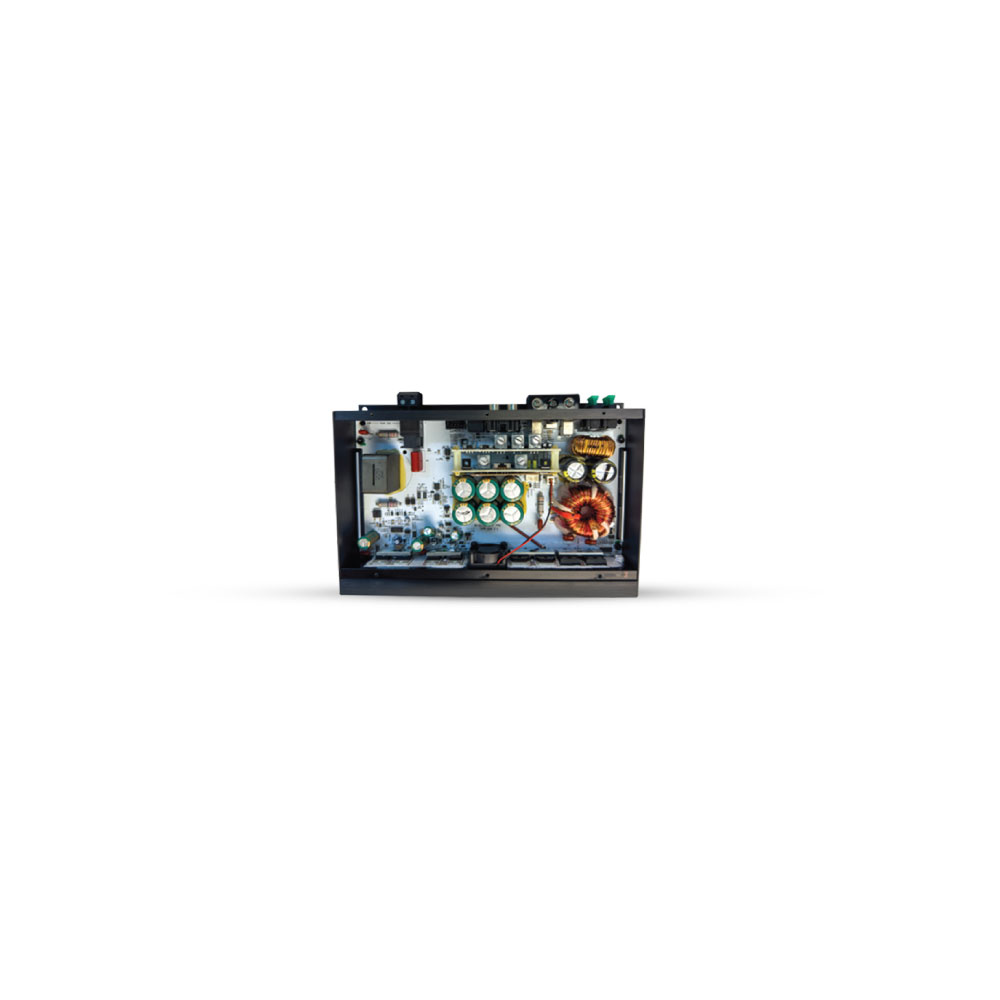

TA-CD-AX.1.1
1-channel mono amplifier
I/O: 1 Side
1 Channel @ 4Ω 185W
1 Channel @ 2Ω 350W (optional 750w)
1 Channel @ 1Ω 750W
LxWxH: 9.02″ × 6.268″ × 2.086″

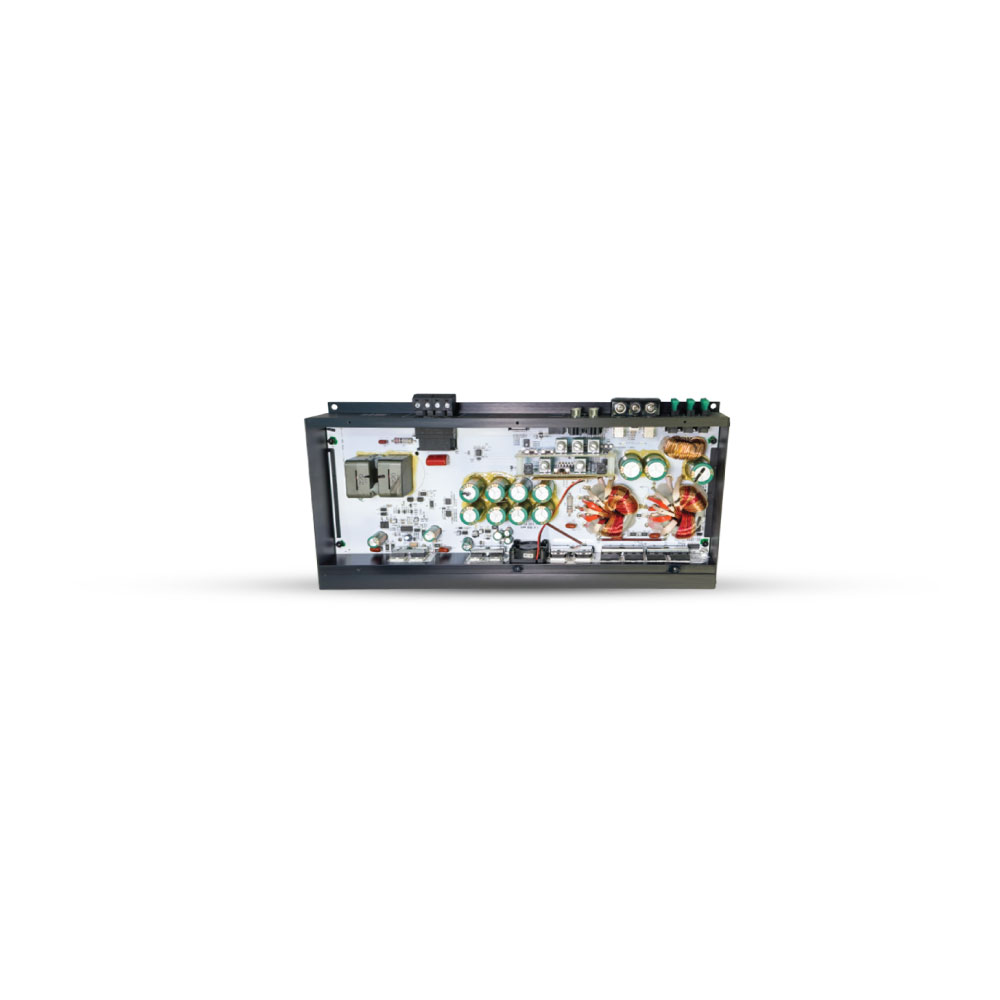

TA-CD-AX.1.2
1-channel mono amplifier
I/O: 1 Side
1 Channel @ 4Ω 350W
1 Channel @ 2Ω 600W
1 Channel @ 1Ω 1100W
LxWxH: 13″ × 6.268″ × 2.162″

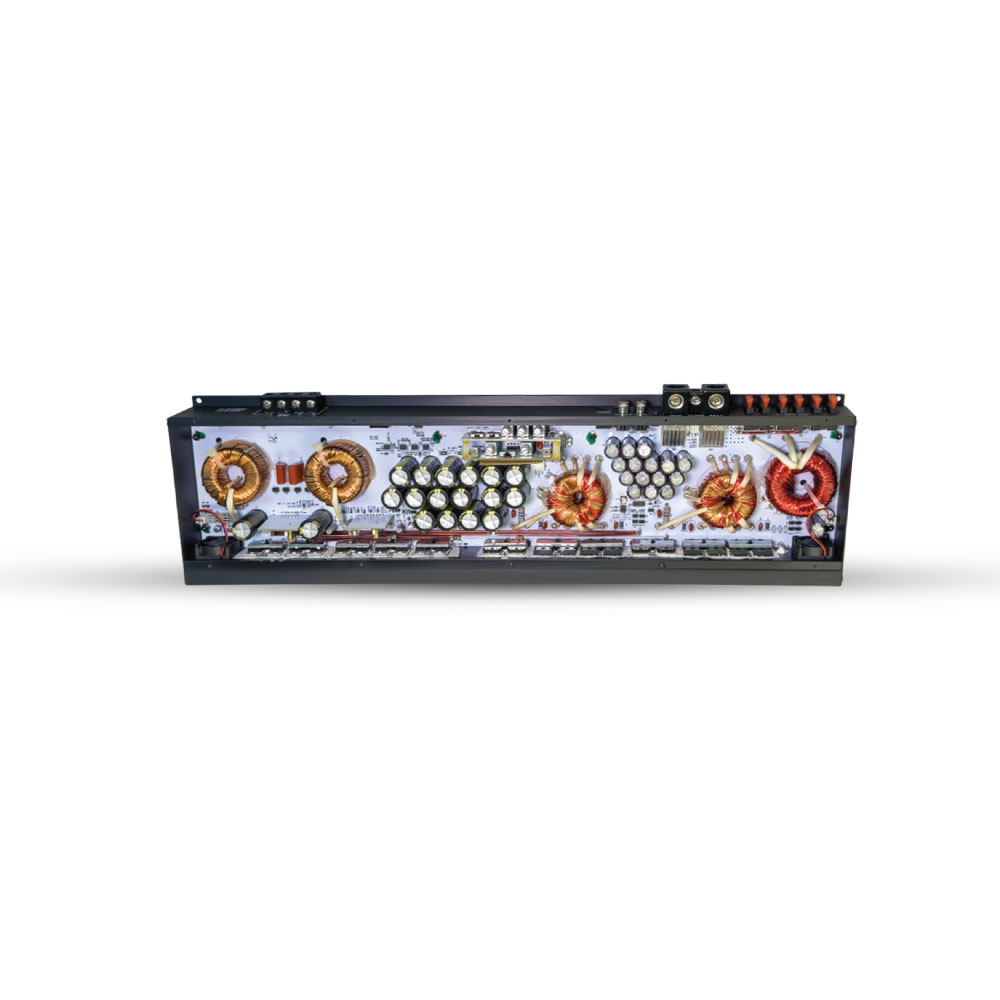

TA-CD-AX.1.3
1-channel mono amplifier
I/O: 1 Side
1 Channel @ 4Ω 900W
1 Channel @ 2Ω 1500W
1 Channel @ 1Ω 2500W
LxWxH: 21.25″ × 6.268″ × 2.162″
