Oct 222014

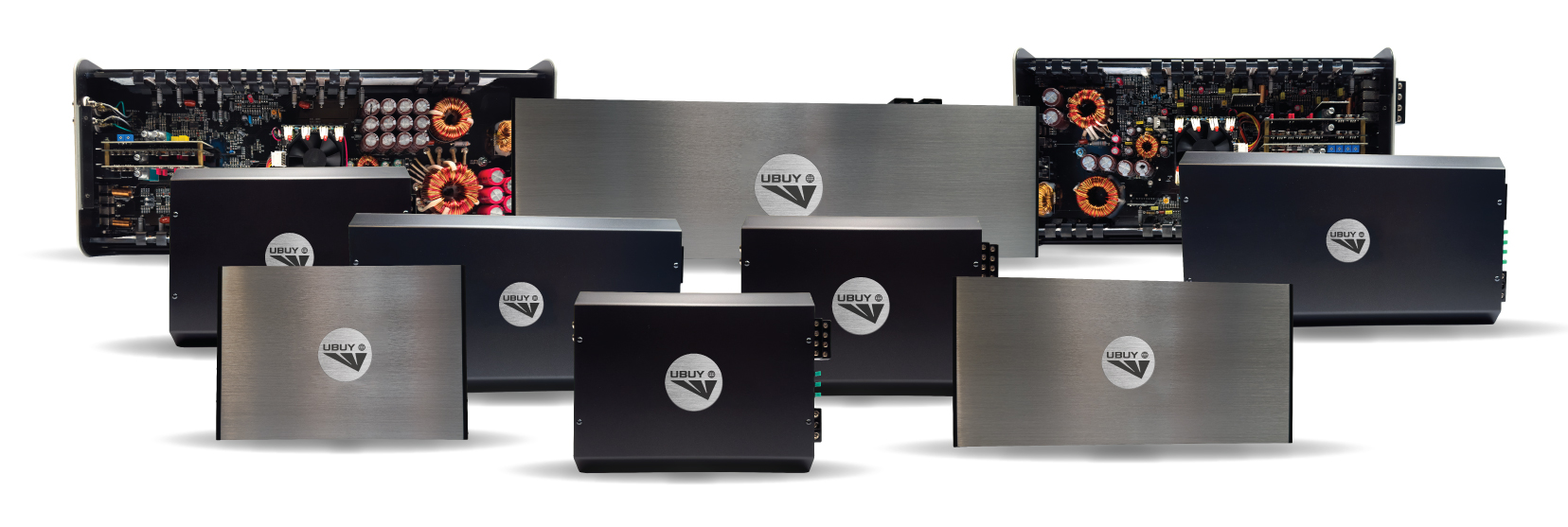

CLASS GH SERIES CAR AMPS (WITH DSP, OPTION)

Full Frequency Amplifier
SKS 2500.1      2500w x 1 @ 1ohm 559 x 220 x 64 mm
SKS 300.4         125w x 4 @ 4 ohm 350 x 220 x 64 mm
SKS 300.2         200w x 2 @ 4 ohm 350 x 220 x 64 mm
SKS 300.6           125w x 6 @ 4 ohm 413 x 220 x 64 mm

Mono Block Subwoofer Amplifier
SKS1500.1       1500w x 1 @ 1 ohm 447 x 220 x 64 mm



SKS2500.1





SKS2500.1



SKS300.4

SKS300.4斜侧



Nov 292013


UBUY would like to announce the general availability to order our new DSP Amplifier front end control.  Compatible with any of our multichannel amplifiers.  The DSP can also supply line level outputs on channels 5 and 6 to drive an external sub-woofer, or other mono or stereo amplifier.

NTT6410DSP(2)

NTT360.4DSP    90w x 4 @ 4ohm



Features:

  1. Multiple hardware configurations available
  2. Multiple levels of DSP Configuration available

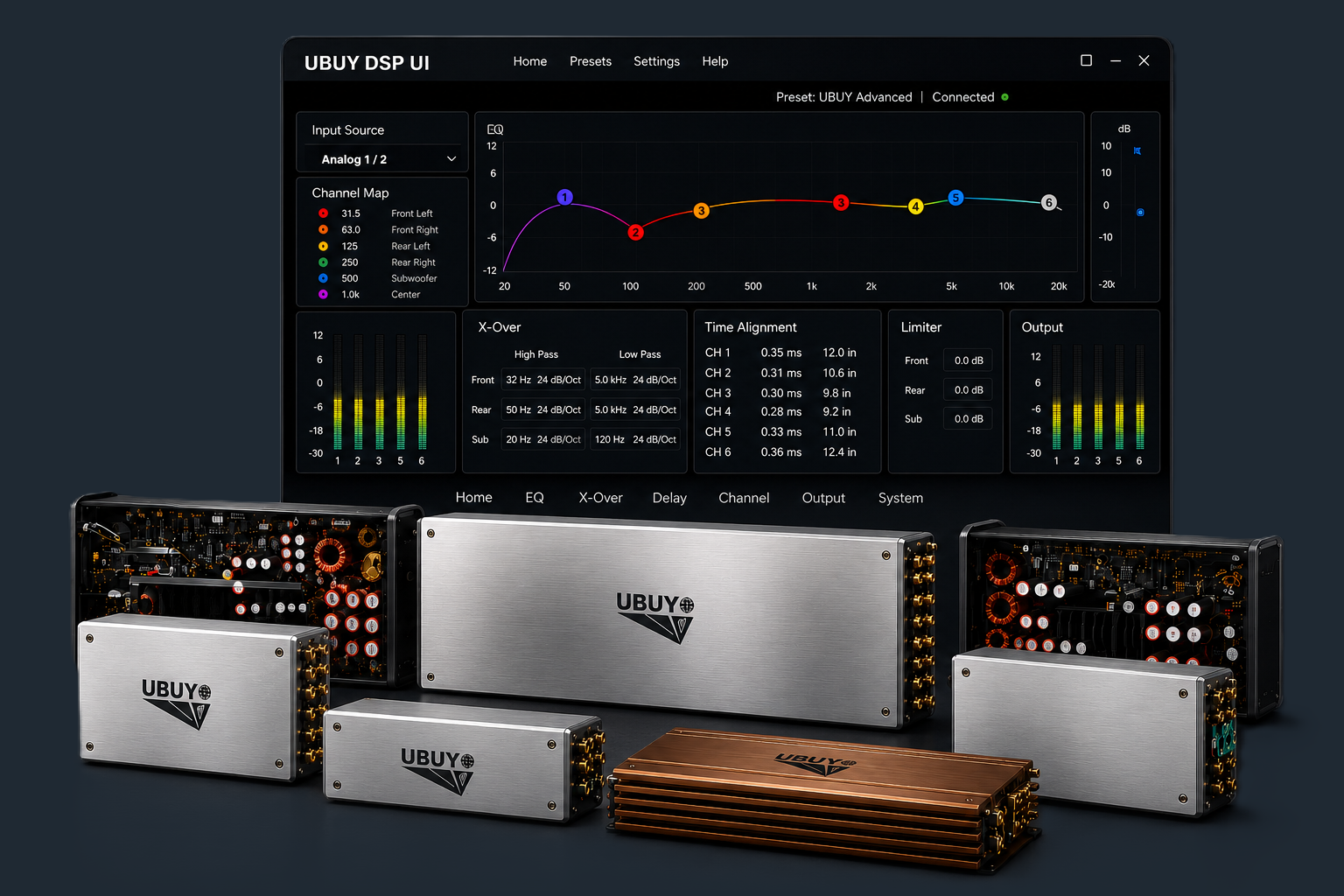

  3. Real time control from GUI Software
  4. Sync software from amp settings, continue tuning where it was left off
  5. Encrypted key in amplifier prevents software from other vendors working with your products
  6. Individual channel gain adjustment
  7. Configurable from 2-6 channel input.  Source for channels 5-6 can be a summed mono of channels 1 – 4
  8. Individual channel muting
  9. Support for bridgeable amplifiers
  10. Individual channel phase invert (Level 2 and 3 DSP Option)
  11. 6 Channel Equalizer:  Global EQ (Level 1), Stereo Pair EQ (Level 2), Single Channel Parametric EQ (Level 3)
  12. Stereo Crossovers: 12/24dB HP or LP (Level 1), 12dB Bandpass (Level 2), 12,24,36,48dB HP/LP or 12/24dB Bandpass (Level 3)
  13. Configurable stereo noise gates (Level 3)
  14. Individual channel delay, up to 5ms (1.7M, 5.6feet, 172cm, 67.5″) in 0.02ms (0.007M, 0.023feet, 0.69cm, 0.27″)  increments.  (Level 2 and 3)



User Interface Compatibility

Windows Vista 32&64 Bit OS ***
Windows 7 32&64 Bit OS ***
Windows 8 OS ***
*** – requires installation of Microsoft .Net framework



UBUY DSP Offer Sheet

AnalogDevices_USB-i2c_Dongle
